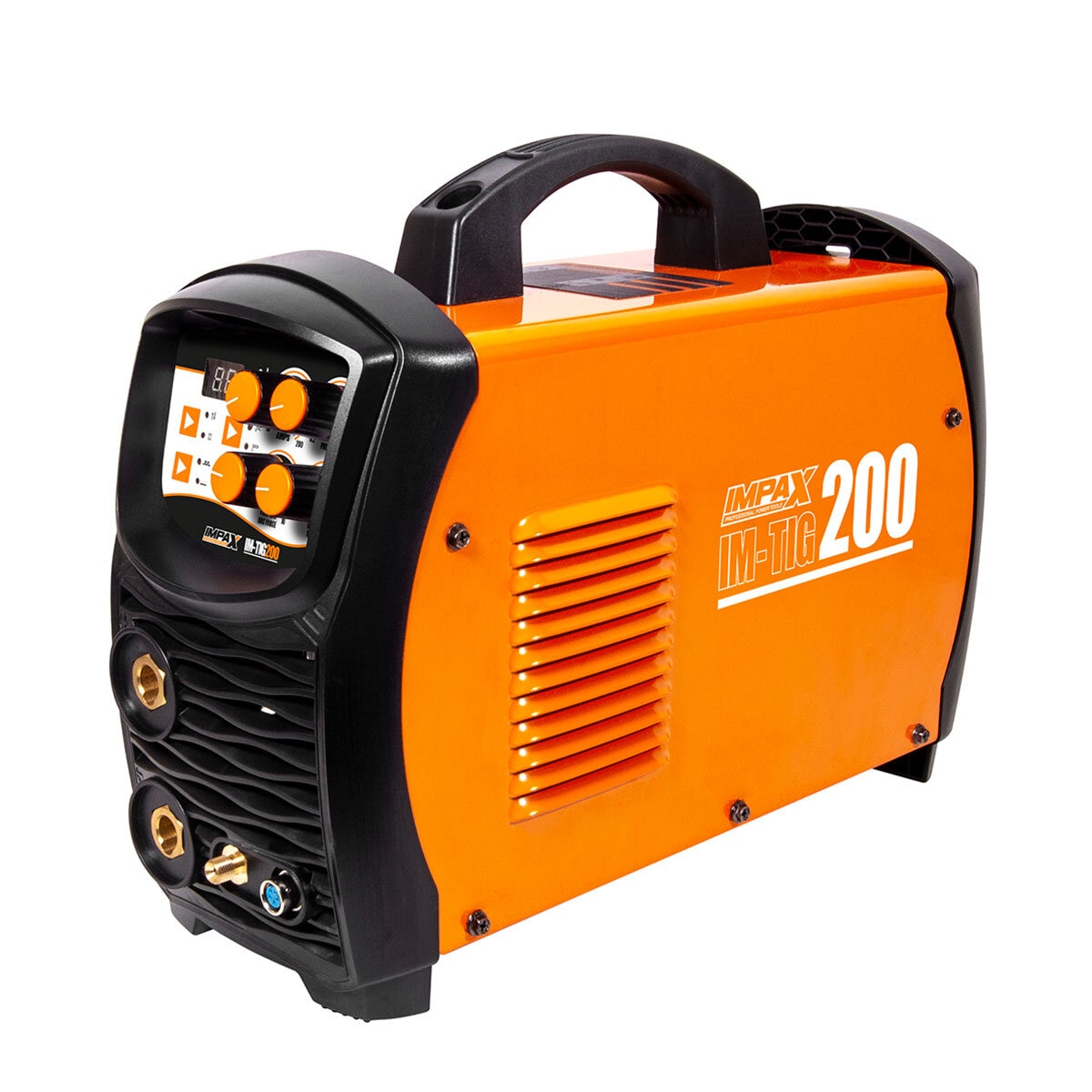

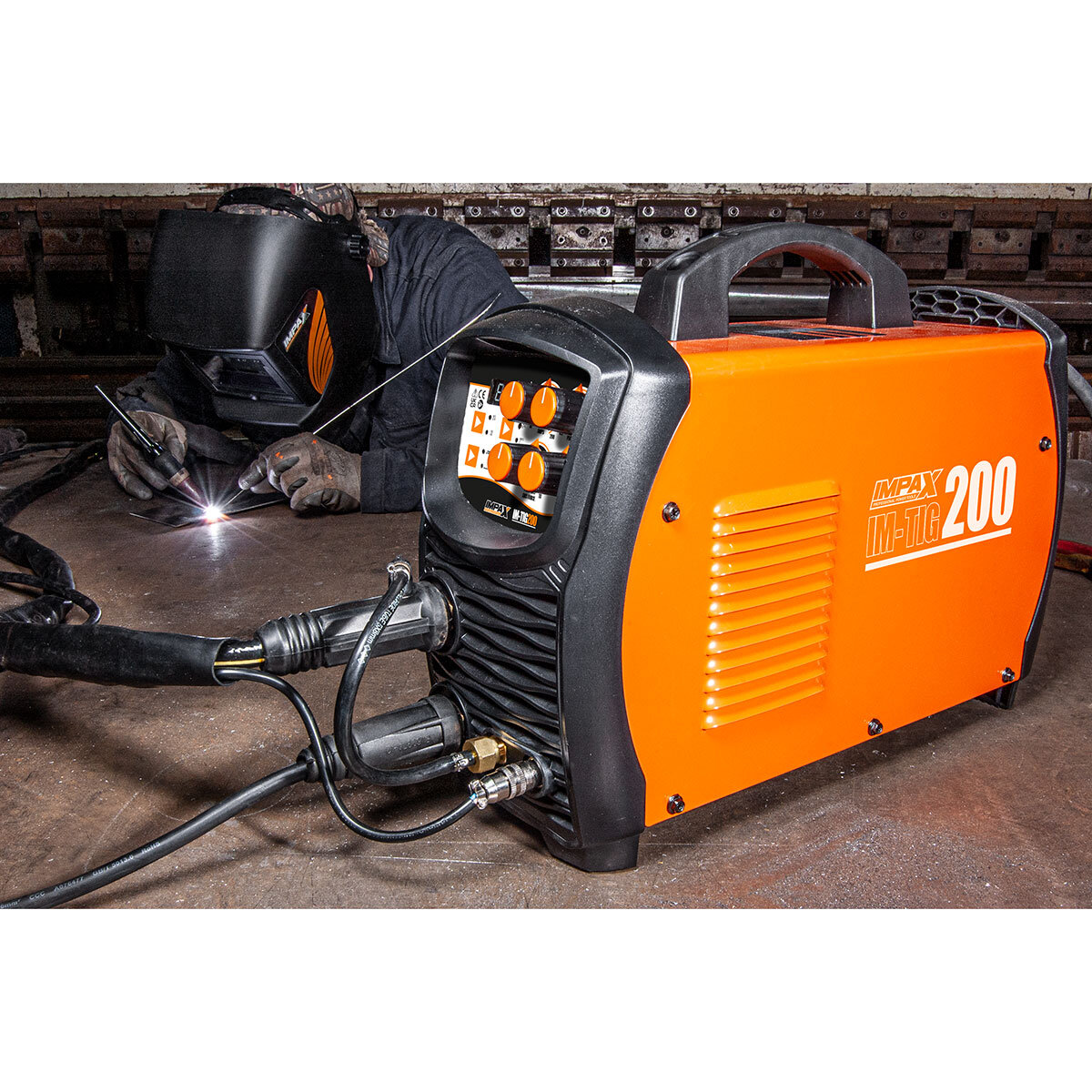

Impax 200A Inverter Multi Function Welding Machine (IM-TIG200)

The Impax 200A 2-in-1 AC/DC inverter welder for powerful TIG and MMA/ARC welding. This machine is ideal for TIG welders requiring precise and reliable performance.

The robust, lightweight and portable welder has great features such as IGBT technology, variable pulse, down slope ,post gas arc force control, and is controlled by analogue dials and a digital display.

Comes with TIG torch, earth clamp, foot pedal, gas pipe, handheld welding mask and TIG torch accessories.

Features

- Technologically advanced single-phase inverter power source offering an ultra portable welding solution.

- An ideal choice for TIG welders that require precise and reliable welding performance.

- TIG Pulse AC/DC inverter welder with IGBT technology, analogue control and digital display.

- Voltage reduction device for added safety.

- Peak current control, 2T/4T.

- Downslope and post-flow gas function.

- Uses electrodes from 1.6mm to 4mm.

- Pulse adjustment.

- AC function for aluminium and aluminium alloys.

- DC TIG function for carbon steel, copper and non-ferrous metals.

Specifications

- Input power: 230V~50Hz

- Rated input current: 33A (TIG), 35.8A (MMA)

- Rated input capacity: 7.3kVA (TIG), 9.3kVA (MMA)

- Fuse: 16A

- Duty cycle: 20%

- Output current range: 10-200A (TIG)

- Output current range: 10-180A (MMA)

- Cooling type: Fan cooling

- Case protection class: IP21S

- Cable length: 1m
